Light weight aluminum nitride (AlN), as a structurally secure hexagonal wurtzite covalently bonded compound, has actually revealed broad application capacity in the fields of electronic devices and optoelectronics because of its one-of-a-kind physical and chemical buildings. Its crystal framework is based on an AlN4 tetrahedron as the basic unit, with space group P63mc coming from the hexagonal crystal system. This structure offers AlN a series of outstanding properties.
Highlight of AlN porcelains
High thermal conductivity: Compared to alumina porcelains, the thermal conductivity of AlN is 5 to 10 times greater. In theory, the thermal conductivity of solitary crystal materials at 300K can reach 319W/(m · K).
Thermal expansion matching: Its thermal expansion coefficient resembles that of semiconductor silicon products, which is conducive to device assimilation.
Outstanding mechanical and electrical buildings: It has high insulation resistance and reduced dielectric loss and is suitable for high-reliability electronic product packaging.
Practical for multi-layer circuitry: sustains miniaturization and high-density integration of packaging.
Environmentally friendly: The non-toxic attributes fulfill modern-day environmental management needs.

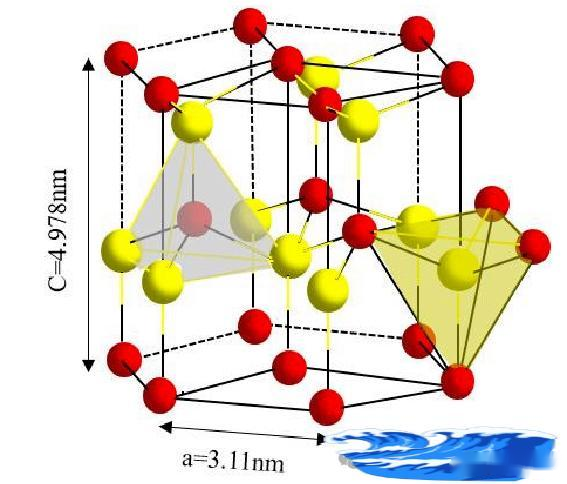

(Aluminum Nitride (AlN) Crystal Structure)
Aspects influencing the thermal conductivity of AlN porcelains
Although the academic thermal conductivity of AlN is very high, its performance in practical applications is restricted by lots of variables, mostly including:
1. Microstructure: Phonon spreading is the crucial mechanism of warm transmission. Grain boundaries, user interfaces, 2nd phases, issues, and so on, will affect the mean complimentary course of phonons, therefore affecting thermal conductivity. High-purity, low-defect single-crystal AlN has a much longer phonon-free course and higher thermal conductivity.
2. Oxygen pollutant web content: The solid fondness of AlN with oxygen makes it simple to present oxygen contaminations, developing aluminum oxide films and lattice flaws, such as aluminum openings, which dramatically reduce the mean totally free course of phonons and hence decrease thermal conductivity. When the oxygen concentration is below 0.75%, oxygen atoms mainly replace nitrogen atoms; exceeding this focus will certainly result in the disappearance of light weight aluminum vacancies and the generation of ductility flaws, further impacting thermal conductivity.
3. Sintering procedure and ingredients: By selecting proper sintering additives (such as Y2O3-Li2O, Y2O3-CaC2 and other composite systems), densification sintering can be attained at a reduced temperature while decreasing the development of oxygen pollutants and 2nd phases, effectively improving the thermal conductivity of AlN ceramics. The role of these additives is to purify the grain limits, maximize the microstructure, and facilitate the effective transmission of phonons.
Comprehensive strategy
(TRUNNANO Aluminum Nitride (AlN) Powder)
In order to acquire AlN ceramics with high thermal conductivity, it is essential to consider the purity of the product adequately, the sintering problems and the option of additives to minimize internal defects, especially to regulate the material of oxygen impurities and maximize the microstructure.
By carefully controlling the sintering process and adopting an efficient composite sintering additive system, it is anticipated that the high thermal conductivity AlN substrate needed for large-scale manufacturing applications can be attained while ensuring material efficiency. This is not just essential for improving the heat dissipation performance of electronic devices, but likewise supplies a crucial material basis for advertising the development of semiconductor technology.
